State Farm Customer Chat Widget — Scaling Enterprise Support at 2M+ Users

State Farm needed to modernize their customer-facing support experience with a redesigned chat widget that could handle massive scale while maintaining exceptional reliability. The system now serves 2M+ monthly users with 99.98% uptime, zero message loss, and sub-200ms response times.

Live Widget

Interface Overview

The widget prioritizes clarity, accessibility, and intuitive interaction patterns for users across different technical skill levels:

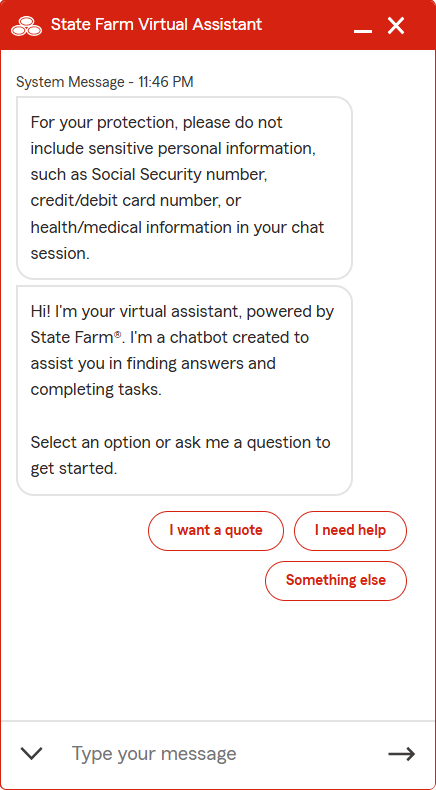

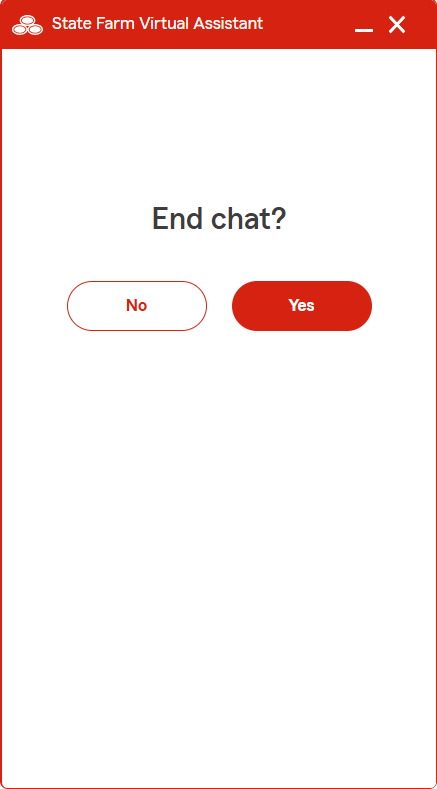

Three key user interface screens: welcome and security messaging, conversational interaction with contextual responses, and session termination with confirmation.

Live Demo: state-farm.com/customer-care/contact-us

Context & Problem

Core challenges:

• Design System Integration: Align with State Farm's new design system while maintaining backward compatibility
• Real-time Communication: Enable reliable, bidirectional message delivery across millions of concurrent users
• Fault Tolerance: Architect for 99.98% uptime with zero message loss, even during backend failures
• Infrastructure Resilience: Handle transient failures, network interruptions, and graceful degradation
• Scalability: Support 2M+ monthly active users with consistent sub-200ms response times
• Transcript Integrity: Ensure complete and persistent conversation logging for compliance and customer service

Technical Landscape

The State Farm support ecosystem operates at enterprise scale:

• Monthly Chat Volume: 2M+ unique user sessions
• Concurrent Chats: Peak load of 15,000+ simultaneous conversations
• Geographic Distribution: Servers across multiple AWS regions for latency optimization
• Compliance Requirements: Financial services regulations on data retention and security
• Customer Demographics: Diverse user base requiring robust accessibility and mobile optimization

Architecture

┌──────────────────────────────────────────────────────────────────┐
│                     State Farm Frontend Layer                     │
│  ┌───────────────────────────────────────────────────────────┐   │
│  │   Angular Chat Widget                                     │   │
│  │   • Design System Components                              │   │
│  │   • RxJS Message Streams                                  │   │
│  │   • Offline Queue Management                              │   │
│  └──────────────────┬──────────────────────────────────────┘   │
└─────────────────────┼──────────────────────────────────────────┘
                      │ WebSocket (Primary)
                      │ HTTP Fallback (Backup)
         ┌────────────┴────────────┐
         │                         │
    ┌────▼────────────────────────▼───────────────────┐
    │   AWS API Gateway (WebSocket Endpoint)          │
    │   • Connection Management                       │
    │   • Message Routing                             │
    │   • Automatic Reconnection Handling             │
    └────┬─────────────────────────────┬──────────────┘
         │                             │
    ┌────▼──────────────────┐  ┌──────▼────────────────┐
    │ Amazon Connect Wrapper│  │  AWS Lambda Functions │
    │ • Session Management │  │  • Message Processing │
    │ • Route to Agents    │  │  • Delivery Tracking  │
    │ • Transcript Logging │  │  • User Context       │
    └────┬──────────────────┘  └──────┬────────────────┘
         │                            │
    ┌────▼────────────────────────────▼───────────────┐
    │        AWS Services & Data Layer                │
    │  • DynamoDB (Message Store & Delivery Status)   │
    │  • S3 (Full Call Transcripts)                   │
    │  • CloudFront CDN (Fallback Content)            │
    │  • RDS (User Session Data)                      │
    └────────────────────────────────────────────────┘

Key Design Decisions & Tradeoffs

Decision 1: Angular + Design System Components

Rationale:

• State Farm standardized on Angular across customer-facing applications
• Design system components ensure visual consistency and accessibility
• Strong community support and tooling for enterprise applications

Alternatives Considered:

• React: Faster developer onboarding but required training investment
• Vue: Lower adoption within State Farm engineering teams
• Web Components: Technology-agnostic but less integrated with design system

Tradeoff: Angular's learning curve versus long-term maintainability and consistency

Decision 2: Dual-Transport Streaming (WebSocket + HTTP Fallback)

Rationale:

• WebSockets provide true bidirectional communication (ideal path)
• HTTP SSE/polling fallback handles restrictive corporate firewalls
• Automatic failover ensures connectivity for all users without manual configuration

Architecture Pattern:

// Automatic transport negotiation
export class ChatTransportService {
  private Transport$ = this.negotiateTransport()

  private negotiateTransport(): Observable<Transport> {
    // Try WebSocket first
    return this.initWebSocket().pipe(
      timeout(3000),
      catchError(() => {
        // Fallback to HTTP polling
        return this.initSSEStream()
      })
    )
  }
}

Tradeoff: Additional complexity in transport layer, but guarantees 100% user connectivity

Decision 3: Persistent WebSocket with Automatic Reconnection

Rationale:

• Network interruptions are inevitable at scale (mobile users, IP transitions)
• Stateful connections maintain message ordering and session continuity
• Exponential backoff prevents cascading failures during outages

Implementation:

class WebSocketManager {
  reconnect(attempt: number = 0) {
    const backoff = Math.min(1000 * (2 ** attempt), 30000)
    setTimeout(() => {
      this.connect().catch(() => this.reconnect(attempt + 1))
    }, backoff)
  }
}

Tradeoff: Stateful connection requires more server resources vs. simpler stateless HTTP

Decision 4: Client-side Delivery Confirmation & Local Queuing

Rationale:

• Users can send messages offline; system queues them locally
• Delivery confirmations prevent message loss during network transitions
• Optimistic UI updates improve perceived performance

Flow:

1. User sends message → Added to local queue immediately
2. Message transmits → Marked as "sending" with delivery ID
3. Server ACKs → Marked as "sent" with timestamp
4. Agent views → Marked as "delivered/read"

Tradeoff: Increased client-side state management complexity for guaranteed delivery

Decision 5: Amazon Connect Wrapper Layer

Rationale:

• Amazon Connect provides enterprise-grade call center infrastructure
• Wrapper abstracts complexity while providing custom delivery guarantees
• Session management and transcript logging built-in

Wrapper Responsibilities:

┌─────────────────────────┐
│  Amazon Connect Wrapper │
├─────────────────────────┤
│ • Route chat to agent   │
│ • Create session        │
│ • Transcript logging    │
│ • Session teardown      │
│ • Error recovery        │
└──────────▲──────────────┘
           │
  ┌────────┴─────────┐
  │ Amazon Connect   │
  │ Contact Center  │
  └──────────────────┘

Implementation Highlights

1. RxJS-based Message Stream Management

export class ChatService {
  private messageSubject = new Subject<ChatMessage>()
  messages$ = this.messageSubject.asObservable().pipe(
    // Deduplicate by delivery ID
    distinctUntilKeyChanged('deliveryId'),
    // Buffer and batch updates
    bufferTime(100, null, 50),
    // Reorder based on sequence numbers
    map(batch => this.orderBySequence(batch)),
    shareReplay(1)
  )

  sendMessage(content: string): Observable<ChatMessage> {
    const message: ChatMessage = {
      id: generateUUID(),
      content,
      timestamp: Date.now(),
      status: 'pending'
    }

    // Optimistic update
    this.messageSubject.next(message)

    // Send to backend
    return this.transport.send(message).pipe(
      tap(response => {
        message.deliveryId = response.id
        message.status = 'sent'
        this.messageSubject.next(message)
      }),
      catchError(error => {
        message.status = 'failed'
        // Keep in local queue for retry
        return of(message)
      })
    )
  }
}

2. Fault-Tolerant WebSocket with Exponential Backoff

export class WebSocketTransport implements Transport {
  connect(): Promise<void> {
    return new Promise((resolve, reject) => {
      const ws = new WebSocket(this.url)

      ws.addEventListener('open', () => {
        this.isConnected = true
        this.reconnectAttempts = 0
        this.pendingQueue.forEach(msg => this.send(msg))
        resolve()
      })

      ws.addEventListener('close', () => {
        this.isConnected = false
        this.attemptReconnect()
      })

      ws.addEventListener('message', (event) => {
        const message = JSON.parse(event.data)
        this.handleMessage(message)
      })

      ws.addEventListener('error', () => {
        reject(new Error('WebSocket connection failed'))
      })
    })
  }

  private attemptReconnect() {
    const backoff = Math.min(
      1000 * Math.pow(2, this.reconnectAttempts),
      30000 // Cap at 30 seconds
    )

    setTimeout(() => {
      this.reconnectAttempts++
      this.connect().catch(() => this.attemptReconnect())
    }, backoff)
  }
}

3. Delivery Confirmation & Transcript Logging

interface ChatMessage {
  id: string                    // Client-side ID
  deliveryId?: string          // Server-assigned ID
  content: string
  timestamp: number
  status: 'pending' | 'sent' | 'delivered' | 'read' | 'failed'
  retryCount?: number
}

export class DeliveryConfirmationService {
  // Track delivery status in DynamoDB
  private trackDelivery(message: ChatMessage): Observable<DeliveryStatus> {
    return this.lambda.invoke({
      FunctionName: 'track-delivery',
      Payload: {
        messageId: message.deliveryId,
        sessionId: this.sessionId,
        timestamp: message.timestamp
      }
    }).pipe(
      // Periodically check status
      interval(500),
      switchMap(() => this.getDeliveryStatus(message.deliveryId)),
      takeUntil(message.status === 'delivered')
    )
  }

  // Ensure transcript logging
  logTranscript(messages: ChatMessage[]): Observable<void> {
    return this.lambda.invoke({
      FunctionName: 'log-transcript',
      Payload: {
        sessionId: this.sessionId,
        messages: messages,
        timestamp: Date.now()
      }
    })
  }
}

4. CDN/Local Fallback Strategy

export class FallbackContentService {
  getInitialContext(): Observable<ChatContext> {
    // Primary: Fresh data from API
    return this.api.getContext().pipe(
      timeout(3000),
      // Fallback 1: Cached data from CDN
      catchError(() => this.cdn.getCachedContext()),
      // Fallback 2: Stale data from localStorage
      catchError(() => {
        const cached = localStorage.getItem('chatContext')
        return cached ? of(JSON.parse(cached)) : throwError('No context')
      }),
      // Final fallback: Minimal context to allow chat
      catchError(() => of(this.getMinimalContext()))
    )
  }

  // Update cache on successful fetch
  getContext(): Observable<ChatContext> {
    return this.getInitialContext().pipe(
      tap(context => {
        localStorage.setItem('chatContext', JSON.stringify(context))
        this.cdn.updateCache(context)
      })
    )
  }
}

5. Design System Integration

// Chat widget uses State Farm design tokens
import { ButtonComponent } from '@state-farm/design-system'
import { colors, spacing, typography } from '@state-farm/design-tokens'

@Component({
  selector: 'app-chat-message',
  template: `
    <div class="message" [ngClass]="message.sender">
      <div class="bubble">
        {{ message.content }}
      </div>
      <div class="metadata" *ngIf="message.status !== 'pending'">
        <icon [type]="getStatusIcon(message.status)"></icon>
        {{ getStatusText(message.status) }}
      </div>
    </div>
  `,
  styleUrls: ['./chat-message.component.scss']
})
export class ChatMessageComponent implements OnInit {
  @Input() message: ChatMessage

  getStatusIcon(status: string): string {
    const icons = {
      sent: 'check-circle',
      delivered: 'double-check',
      read: 'double-check-filled'
    }
    return icons[status] || 'clock'
  }
}

Scale & Performance Metrics

Reliability & Uptime

Capacity

Infrastructure

• Regions: Multi-region deployment across AWS
• Availability Zones: 3+ AZs for cross-region failover
• Auto-scaling: Dynamic scaling based on concurrent connections
• Cost Optimization: 40% reduction through connection pooling and caching

Accessibility & Compliance

• WCAG 2.1 AA compliance verified through automated and manual testing
• Keyboard Navigation: Full support for assistive technologies
• Screen Reader Compatible: Semantic HTML with ARIA live regions for dynamic updates
• Color Contrast: 7:1 minimum contrast ratio throughout
• Mobile Accessibility: Touch targets 48x48px minimum
• Financial Services Compliance: PCI DSS, SOC 2 Type II certified
• Data Retention: CCPA, GDPR compliant message retention policies

Lessons Learned

1. WebSocket Complexity is Worth It: The 200ms latency reduction and improved UX justified the additional infrastructure complexity.

2. Exponential Backoff Prevents Cascading Failures: Simple but critical for preventing thundering herd effects during outages.

3. Local Queuing Dramatically Improves Perceived Reliability: Users tolerate offline periods gracefully when they see messages queued locally.

4. Design System Integration Matters: Consistency with State Farm's visual language increased user trust and reduced support burden.

5. Comprehensive Logging is Essential: Detailed delivery tracking enabled rapid diagnosis of edge cases at scale.

Impact

The redesigned chat widget has become State Farm's primary customer support channel:

• 2M+ monthly users rely on the system
• 99.98% uptime translates to ~2 minutes of downtime per month
• Zero message loss maintained across all failure scenarios
• ~8 minute average session duration indicates users find value in the channel
• Design system alignment improved consistency across 50+ State Farm digital touchpoints

Live Widget: state-farm.com/customer-care/contact-us
